Torus Trooper - Rebooting a 15 year-old game written in D - Part 4 Final steps

See also

Hooking up keyboard input

Remember the interface described earlier:

1
2
3
4
5
6
7

public interface InputBackend {
  public void update();
  public int getDirState();
  public int getButtonState();
  public bool getExitState();
  public bool getPauseState();
}

Here is the implementation for WebAssembly:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

public class InputBackendWASM : InputBackend {
  uint state = 0;

  public override void update() {
    import wasm;
    state = wasm.inputState();
  }
  public override int getDirState() { return state & 0xF; }
  public override int getButtonState() { return state & 0x30; }
  public override bool getExitState() { return (state & 0x40) != 0; }
  public override bool getPauseState() { return (state & 0x80) != 0; }
}

Very simple, the good thing is that the original code already used masks for gameplay inputs. I just had to add another bit for exit and another one for pause.

From the JS side, there are keydown/keyup events that map the masks to the final value:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

function maskInput(code, enable) {
  const masks = {
    ArrowUp: 0x1,
    ArrowDown: 0x2,
    ArrowLeft: 0x4,
    ArrowRight: 0x8,
    ControlLeft: 0x10,
    ShiftLeft: 0x20,
    Escape: 0x40,
    KeyP: 0x80
  };
  if (code in masks) {
    const mask = masks[code];
    if (enable) {
      inputState |= mask;
    } else {
      inputState &= ~mask;
    }
  }
}

window.addEventListener("keydown", function(event) {
  if (!event.defaultPrevented) {
    maskInput(event.code, true);
  }
  event.preventDefault();
}, true);

window.addEventListener("keyup", function(event) {
  if (!event.defaultPrevented) {
    maskInput(event.code, false);
  }
  event.preventDefault();
}, true);

This works well enough, it can be extended later with more keys that map to the same input or make it customisable.

fmodf

While doing the custom runtime, and because it’s not using any C runtime stuff, it complained about an undefined fmod symbol at link time. It’s a math function to compute the floating-point remainder of the operation x / y.

Unfortunately this doesn’t have a JS Math equivalent like the other ones, but it works in JS with the % operator, so I just ended up using that:

1

wasm_fmodf: function(x, y) { return x % y; }

Tackling memory allocation

In the title screen, I found that approximately every 4800 frame there was an increase of the WASM memory buffer. It came from a Vector3 allocation in createTorusShape used to draw multiple parts of the menu. I solved this one by using the scope keyword in D, it means the allocation is limited to the scope:

1
2
3
4
5
6

private void createTorusShape(int n) {
  scope Vector3 cp = new Vector3;
  cp.z = 0;
  scope Vector3 ringOfs = new Vector3;
  ...
}

However, during gameplay there are class instances that will live beyond the scope of a method and will need cleaning up once ununsed (eg. bullets or enemies). Ideally, the GC would take care of that but D doesn’t really have a GC unless you use the druntime code. Best here is to reuse memory as much as possible and identify which parts still need allocations.

This is an area that probably needs more attention as it currently leaks memory but it’s still possible to play through the game multiple times before it’s an issue. Help would be appreciated on a solution, possibly making a very basic GC would be good but an easier way would just be to make a pool of most things that can be reused (some classes already did that but only for game stuff).

Resizing the game

I did the whole series so far using a fixed resolution of 800 x 600 but all the code to support resizing is available so let’s try to handle that correctly.

I exposed a D method to WASM that will be called whenever the game needs to be resized, that tells the game what size the GL viewport is.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

function onResize() {
  var w = window.innerWidth;
  var h = window.innerHeight;
  const ratio = 4.0 / 3.0;
  if (w < (h * ratio)) {
    h = Math.round(w / ratio);
  } else {
    w = Math.round(h * ratio);
  }
  canvas.style.left = (window.innerWidth / 2 - w / 2) + "px";
  canvas.style.top = (window.innerHeight / 2 - h / 2) + "px";
  canvas.style.width = w + "px";
  canvas.style.height = h + "px";
  canvas.width = w;
  canvas.height = h;
  exports._resized(w, h);
}
window.addEventListener("resize", onResize, true);

That allows the game to retain its original 4:3 ratio. I found using a wider viewport results in camera issues that I’m not willing to fix at this point, it also stretches the text and doesn’t look as good.

Playing audio

Playing music and sound effects is an important part of the game’s character. However, supporting SDL_Mixer in WebAssembly wasn’t realistic. The best solution I found is to embed the sound files as ubyte[] and create bridge between JS and WASM that then uses the WebAudio API to play sounds.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

ubyte[] read(string path) {
  if (path == "sounds/chunks/boss_dest.wav") return cast(ubyte[]) import("sounds/chunks/boss_dest.wav");
  if (path == "sounds/chunks/charge.wav") return cast(ubyte[]) import("sounds/chunks/charge.wav");
  if (path == "sounds/chunks/charge_shot.wav") return cast(ubyte[]) import("sounds/chunks/charge_shot.wav");
  if (path == "sounds/chunks/extend.wav") return cast(ubyte[]) import("sounds/chunks/extend.wav");
  if (path == "sounds/chunks/hit.wav") return cast(ubyte[]) import("sounds/chunks/hit.wav");
  if (path == "sounds/chunks/middle_dest.wav") return cast(ubyte[]) import("sounds/chunks/middle_dest.wav");
  if (path == "sounds/chunks/myship_dest.wav") return cast(ubyte[]) import("sounds/chunks/myship_dest.wav");
  if (path == "sounds/chunks/shot.wav") return cast(ubyte[]) import("sounds/chunks/shot.wav");
  if (path == "sounds/chunks/small_dest.wav") return cast(ubyte[]) import("sounds/chunks/small_dest.wav");
  if (path == "sounds/chunks/timeup_beep.wav") return cast(ubyte[]) import("sounds/chunks/timeup_beep.wav");
  if (path == "sounds/musics/tt1.ogg") return cast(ubyte[]) import("sounds/musics/tt1.ogg");
  if (path == "sounds/musics/tt2.ogg") return cast(ubyte[]) import("sounds/musics/tt2.ogg");
  if (path == "sounds/musics/tt3.ogg") return cast(ubyte[]) import("sounds/musics/tt3.ogg");
  if (path == "sounds/musics/tt4.ogg") return cast(ubyte[]) import("sounds/musics/tt4.ogg");
  return null;
}

Then add a few new WASM exposed methods:

1
2
3
4
5
6

extern (C) {
  uint wasm_sound_load(const(char*) nameptr, size_t namelen, const(ubyte*) bufptr, size_t buflen);
  void wasm_sound_play(const(char*) nameptr, size_t namelen);
  void wasm_sound_fadeMusic(uint ms);
  void wasm_sound_haltMusic();
}

The main trick here was to make sure of 2 things:

  • Playing the same sound effect multiple times in a row is possible
  • The music system needs to behave the same way as SDL_Mixer: only one music at once, in a loop, and some way to fade before the next music is played

For 1, I found some StackOverflow answers that weren’t satisfying until I discovered that AudioContext.createBufferSource can just be called every time we need to play a sound and we only need the AudioBuffer instances for each sound to be preloaded.

For 2, the same flow can be reused for preloading but then also connect a GainNode to control the volume and store the sound instance so it can be stopped when the next music starts. Conveniently, the gain property is an AudioParam instance which has a linearRampToValueAtTime method which is used to fade out the music.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    // ...
    wasm_sound_play: function(nameptr, namelen) {
      const name = decoder.decode(new Uint8Array(memory.buffer, nameptr, namelen));
      const isMusic = name.startsWith("sounds/musics");
      const src = ac.createBufferSource();
      src.buffer = acData[name];
      if (isMusic) {
        if (acMusic) {
          acMusic.node.stop();
          acMusic.gain.disconnect();
          acMusic = null;
        }
        const gain = ac.createGain();
        src.connect(gain);
        src.loop = true;
        gain.connect(ac.destination);
        acMusic = { node: src, gain: gain };
      } else {
        src.connect(ac.destination);
      }
      src.start();
    },
    wasm_sound_fadeMusic: function(ms) {
      if (acMusic) {
        acMusic.gain.linearRampToValueAtTime(0, ac.currentTime + ms * 0.001);
      }
    },
    // ...

Fix game/draw loop

On platforms where the game runs a bit slower, it looks a bit jarring as the whole gameplay slows down to a crawl. The usual way I fix this is by using the method from Glenn Fiedler. It’s similar to what the original game did but original had a sleep timer which isn’t very practical and doesn’t really work in some contexts.

The big change is splitting the update loop from the draw method. The game loop is now done in JS to avoid having to pass frame times back and forth across the JS/WASM boundary.

It looks something like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

const targetFrameRate = 1000.0 / 60.0;
var frameAccumulator = 0.0;
var previousTimestamp = null;
function loop(timestamp) {
  if (previousTimestamp == null) {
    previousTimestamp = timestamp;
  } else {
    const diff = timestamp - previousTimestamp;
    previousTimestamp = timestamp;
    frameAccumulator += diff;
  }
  var numUpdates = 0;
  while (frameAccumulator >= targetFrameRate) {
    frameAccumulator -= targetFrameRate;
    if (!exports._update()) {
      numUpdates++;
    } else {
      break;
    }
  }
  if (numUpdates > 0) {
    exports._draw();
    numUpdates = 0;
  }
  requestAnimationFrame(loop);
}

Loading screen

With adding the audio, the transfer of tt.wasm is becoming a problem on first visit (it’s cached afterwards). Before embedding the audio, the server side compression in HTTP was doing an amazing job. However, with .ogg files it’s not as efficient as those are already compressed. At the time of writing, it’s a 5.49 MB transferred for a 7.66 MB total file size once decompressed. I’ll need to find a solution and show a progress bar during loading.

For this, I had the idea of using an embedded SVG document inside the index page to avoid multiple transfers and have a way of displaying the controls while it’s loading. To get the SVG, I did a debug output of some of the vector art from the game into a SVG path syntax (the d attribute of a path element) and included that into the index page. That means the game title is now visible even before the loading the WASM binary is done.

With this, because all the static content is included in the index page, it’s possible to show something if JavaScript is disabled. Then, if it’s enabled, we can test for browser features required and for optional ones. A message is displayed accordingly.

If everything works, the Fetch API is used to report an accurate progress bar of how the WASM download is doing. If compression is enabled server side the Content-Length header from the HTTP request isn’t accurate is it’s the compressed size. The solution I used here is to hardcode the WASM size in the JS code as it’s unlikely to change drastically anyway.

Saving local scores/replays

The game save 2 types of files: a tt.prf file which contains high-scores and unlocked levels, replays as last.rpl and error.rpl. I’m going to map the std.file.read and std.file.write functions to read/write with the LocalStorage API in JavaScript. The only trick here is that LocalStorage is a string key/value store, it maps string keys to string values. It’s very simple to use for my binary data, I have to convert the files to/from a string. I tried using the btoa/atob calls in JavaScript but it expects well-formed strings which aren’t going to work the data the game is writing as it can contain invalid UTF-8 sequences for example. So I just converted to a hex string, eg. [104, 101, 108, 108, 111] becomes 68656c6c6f and vice-versa.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

function bin2hex(buf) {
  return buf.reduce(function(hexstr, byte) {
    return hexstr + ('0' + (byte & 0xFF).toString(16)).slice(-2);
  }, "");
}
function hex2bin(hexstr) {
  return Uint8Array.from(hexstr.match(/../g).reduce(function(bytes, hex) {
    bytes.push(parseInt(hex, 16));
    return bytes;
  }, []));
}

// ...

wasm_writeFile: function(nameptr, namelen, dataptr, datalen) {
  const name = decoder.decode(new Uint8Array(memory.buffer, nameptr, namelen));
  const data = new Uint8Array(memory.buffer, dataptr, datalen);
  const str = bin2hex(data);
  localStorage.setItem(name, str);
  console.log("saved " + name + " with " + data.length + " bytes");
},

Note the files are binary compatible with the original game. If you have a replay or high-scores, you can technically import them in the browser using the Dev Tools and have the online version of the game load them.

Mobile support

A lot of people nowadays just browse on mobile (hello you!), I thought it would be great if the game was somewhat playable on mobile. It’s a lot of work to get it to behave close to a native app but I tried to do that.

Fullscreen mode

This is easy, there is an API for it that’s been around for a while. I just had to add a button.

On screen controls

A bit harder, but I didn’t want to make it too complicated. The main element here is a SVG layer on top that has elements with id attribute set. Every time a touch event happens, the touched elements are checked and the id is mapped to the bitmask the game knows.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

const uiMap = {
  uiA: 0x10,
  uiB: 0x20,
  uiBack: 0x40,
  uiDirR: 0x8,
  uiDirBR: 0xA,
  uiDirB: 0x2,
  uiDirBL: 0x6,
  uiDirL: 0x4,
  uiDirTL: 0x5,
  uiDirT: 0x1,
  uiDirTR: 0x9
};
function uiID(element) {
  if (element) {
    if (element.id) {
      return element.id;
    }
    if (element.parentNode) {
      return element.parentNode.id;
    }
  }
  return null;
}
function registerTouchEvent(name, state) {
  window.addEventListener(name, function(event) {
    var ids = [];
    for (const touch of event.touches) {
      const element = document.elementFromPoint(touch.clientX, touch.clientY);
      const id = uiID(element);
      if (id in uiMap) {
        ids.push(id);
      }
    }
    touchInputState = 0;
    for (id of ids) {
      touchInputState |= uiMap[id];
    }
    updateInput();
    if (ids.length > 0) {
      event.preventDefault();
    }
  }, false);
}
registerTouchEvent("touchstart");
registerTouchEvent("touchend");
registerTouchEvent("touchmove");
registerTouchEvent("touchcancel");

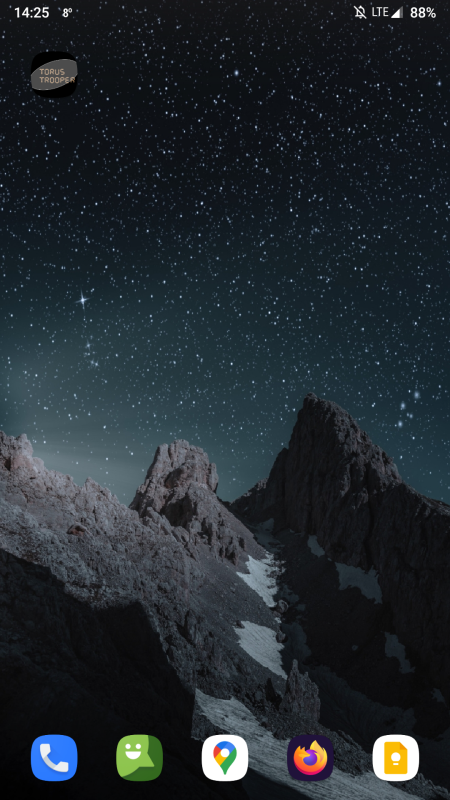

Progressive Web App (PWA) support

This mainly consisted of generating the manifest.json file to describe the application. A lot of tutorials I have found describing the setup of a PWA usually omitted to detail the ServiceWorker life cycle though. Every time the page loads, the sw.js file is checked for differences, and if there are any it’ll load a new worker but only shut down the previous one when the page is closed and not when merely reloading (except when using Shift+F5). In the end, I added a simple way during the public deploy to add the git commit SHA in sw.js to reload it every time it changes and that also clears the cache. Otherwise files would still be in cache.

Wrapping up the series

It’s been a long journey but it was a very good project personally. Some of things I had to learn and discover:

  • Evolution of D as a language: I had to modify code from D v0.110 to work on the modern frontend D v2.093 (when I started the project it was the latest). This was great experience as I could see both evolution of language and standard library.
  • Removing dependencies by writing my own parser for expressions and XML: this was fun and very satisfying once it was working.
  • Porting from deprecated OpenGL to more modern API: this is close to my day job so it wasn’t too bad, it’s the usual thing of lowering the overhead of the CPU side by doing less things.
  • Making a custom runtime for D was fun but painful at times: there is some progress being made here but it’ll take a while before it becomes easier.
  • Learning new(-ish) web technologies I hadn’t touched before: WebAssembly, WebGL, WebAudio, LocalStorage, PWA
  • Asking questions on the D forums was a great experience: the people are always helpful and everyone enjoys participating

Finally, I don’t think this is finished just yet as I’m sure there’ll be some feedback and issues found. Anyway, thanks for reading up to here. Enjoy the game!

It’s playable at https://torustrooper.xyz

Code is available at https://github.com/speps/tt
